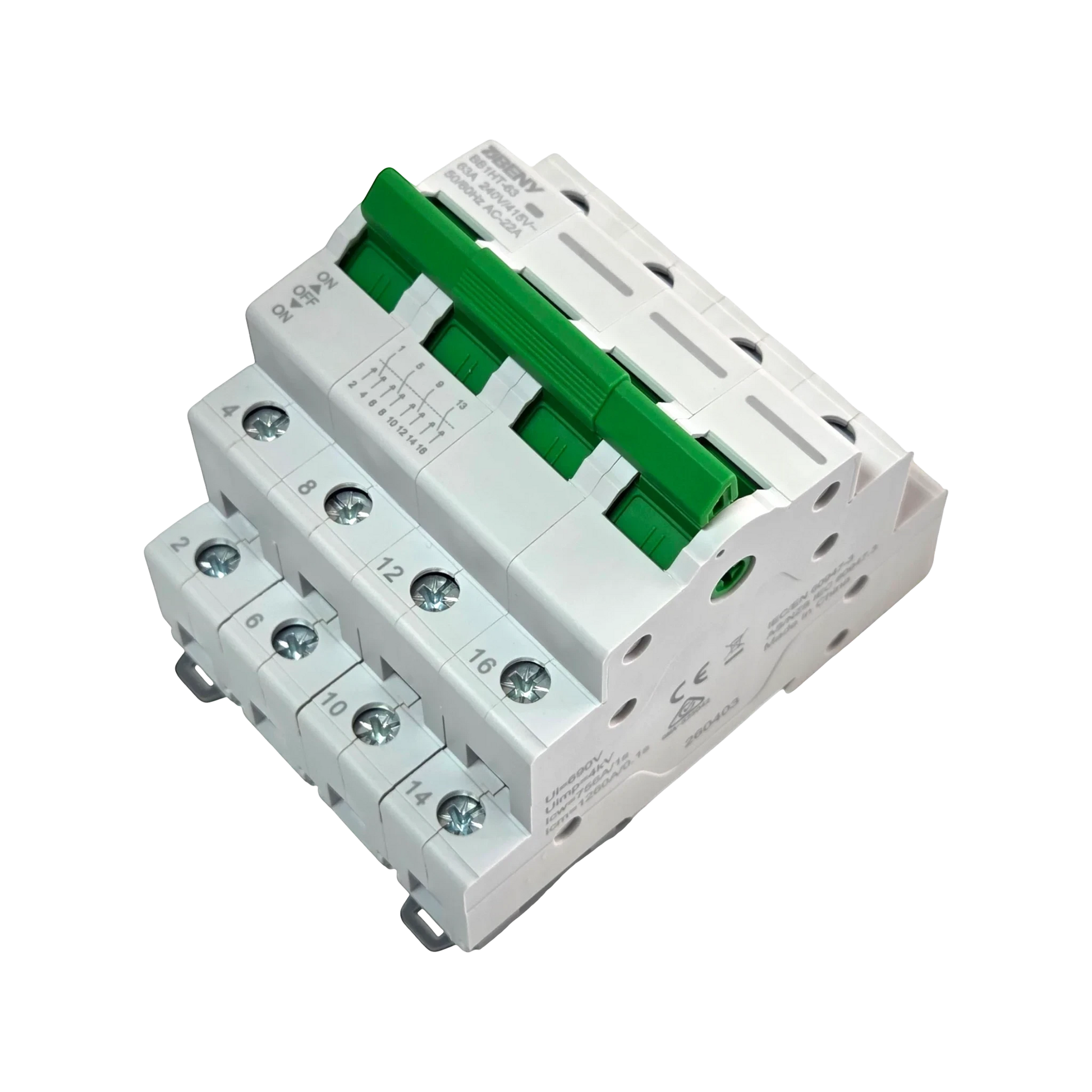

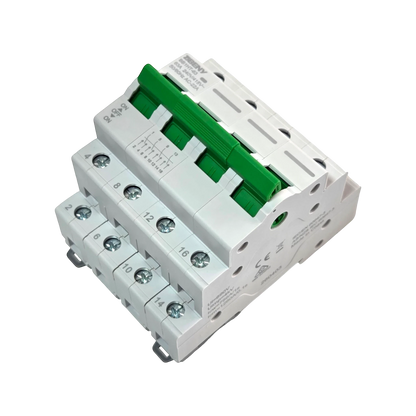

• Redispose 4-pole 63A heavy-duty change-over switch with green manual lever and DIN rail mount.

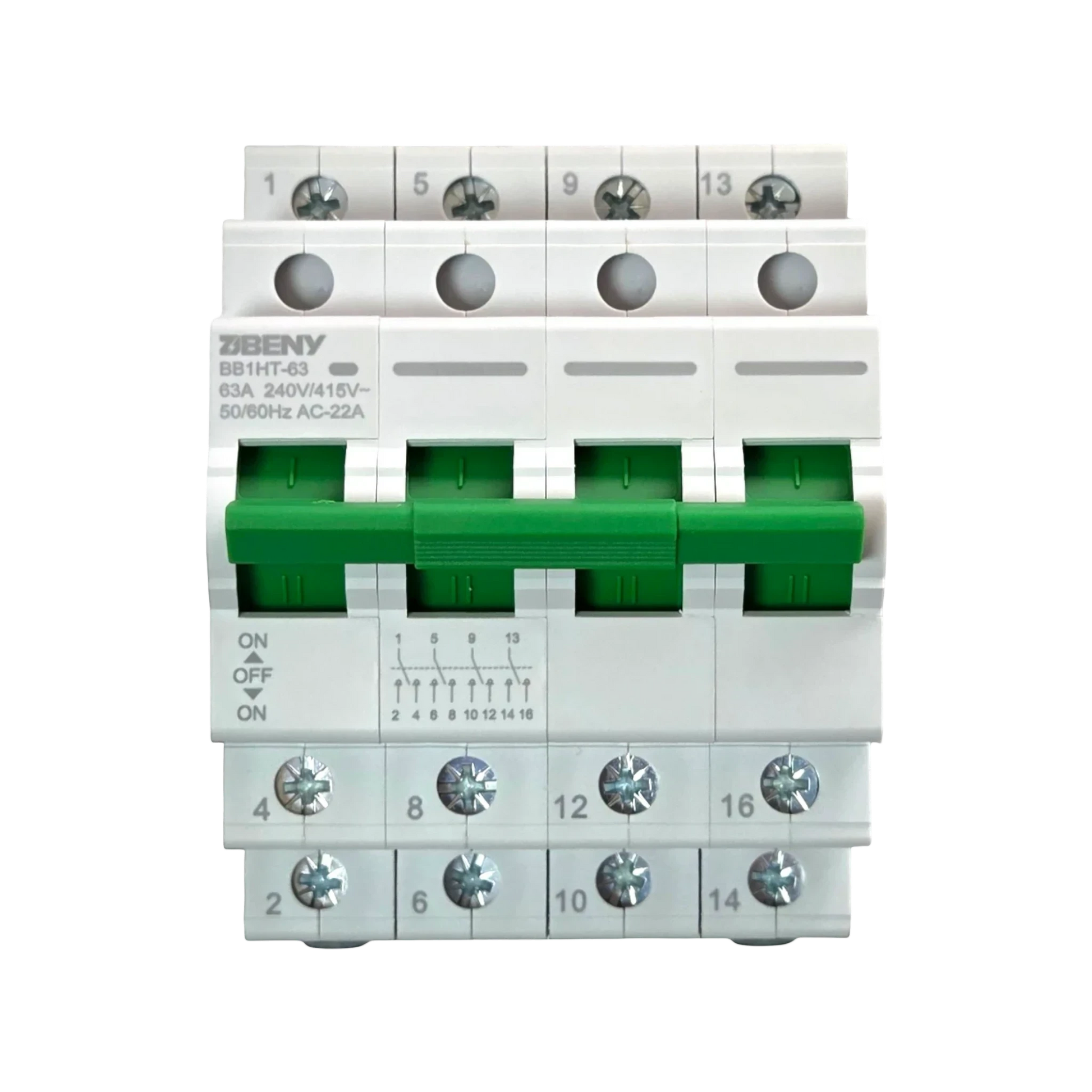

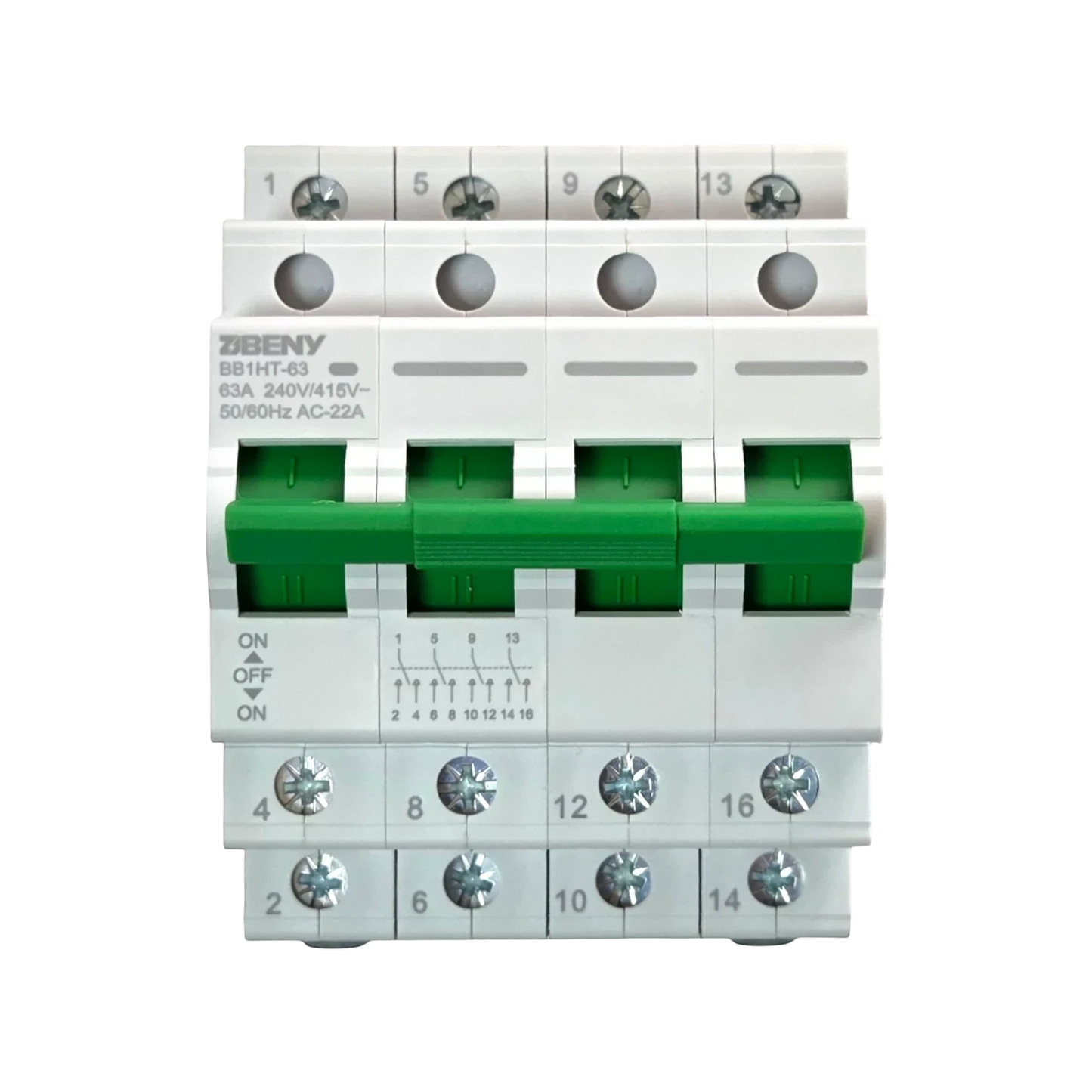

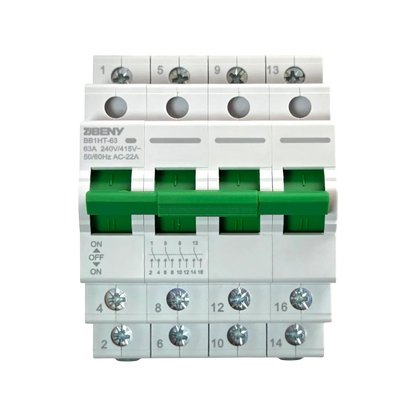

  • Redispose 4-pole 63A heavy-duty group change-over switch with green manual lever and DIN rail mounting.
  • Redispose 4-pole 63A group change-over switch schematic diagram with numbered terminals for source switching and circuit isolation.

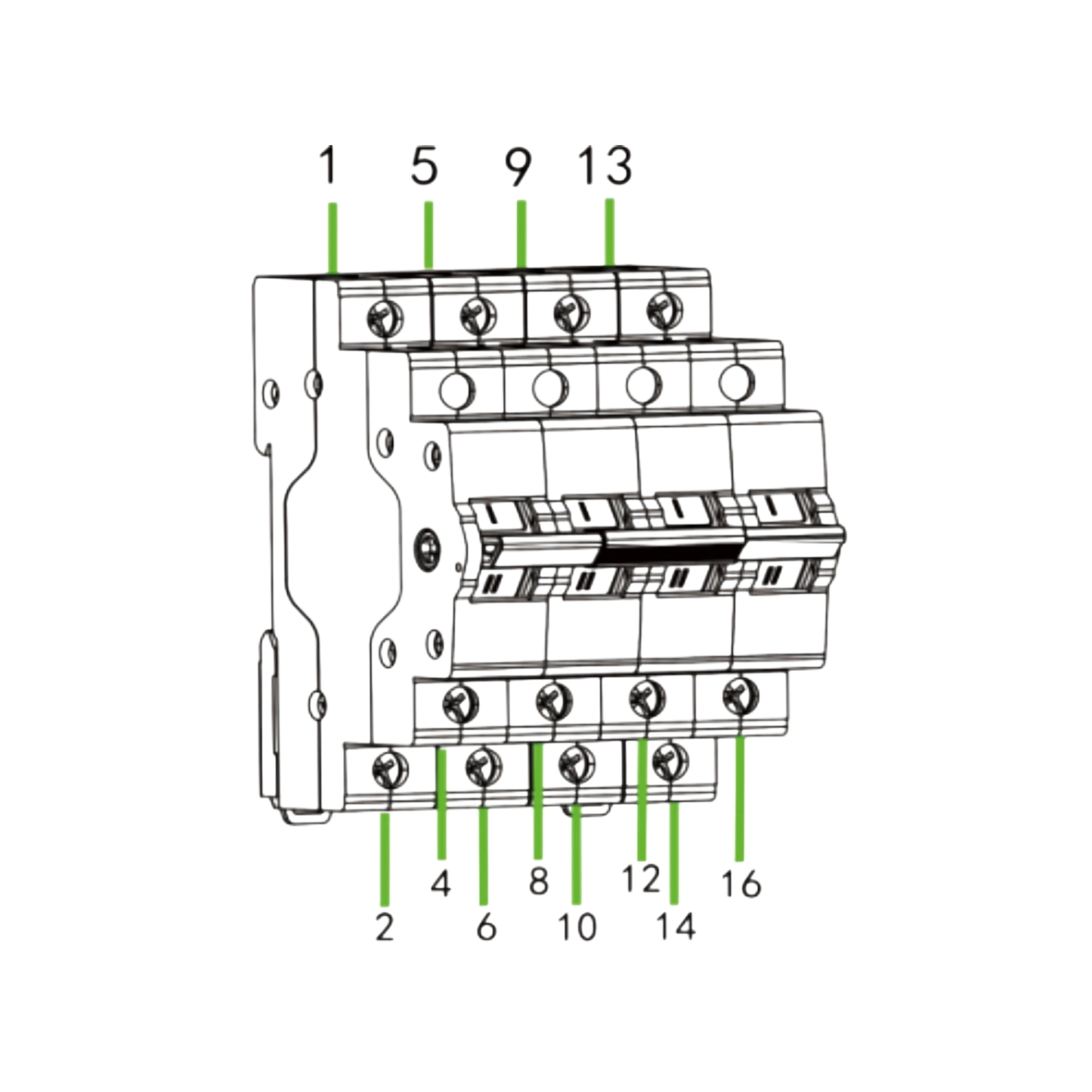

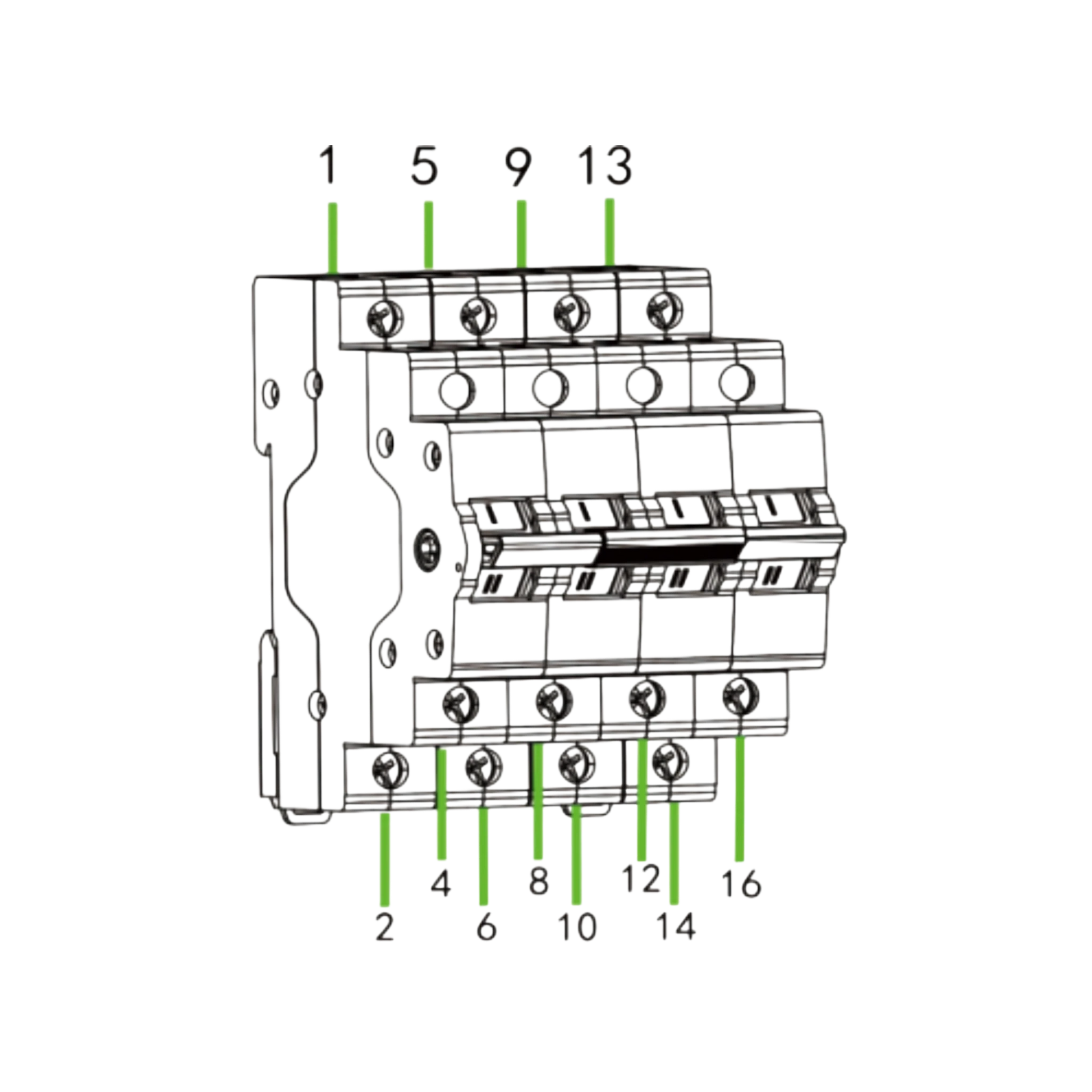

  • Redispose 4-pole 63A group change-over switch with DIN rail mount and clear position indicator.
1 4

ZJ Beny

4P Group Change-Over Switch, 63A

4P Group Change-Over Switch, 63A

€44,00 EUR
€44,00 EUR
Sale Sold out
Taxes included if applicable. Shipping calculated at checkout.

The ZJ Beny BB1HT-63 is a heavy-duty 63A AC group change-over switch designed for reliable source switching in residential, commercial, and industrial distribution boards. It mounts directly on standard DIN rail, making it ideal for manual generator changeover, dual-supply selection, and circuit isolation applications.

A change-over switch is a nice addition to any grid tied install. Mainly used for bypassing the inverter or to switch loads between grid and backup/inverter/battery power. Small footprint and very affordable.

True three-position switching (Source I – OFF – Source II) with positive break action
Suitable for mains / generator changeover, dual-tariff switching, and load transfer applications
Clear handle position indicator prevents ambiguous switching states
Robust thermoplastic housing rated for continuous use in enclosed panels

Rated current: 63A
Voltage: 230AC/400AC
Poles: 4
Mounting: DIN rail

Width: 71,2mm
Height: 96,8mm
Depth: 75,0mm

IEC 60947-3, CE certified, RoHS compliant, DIN EN 60947

Installation must be carried out by a qualified electrician in accordance with local wiring regulations. This switch is intended for manual operation only - it is not suitable for automatic transfer switching.
