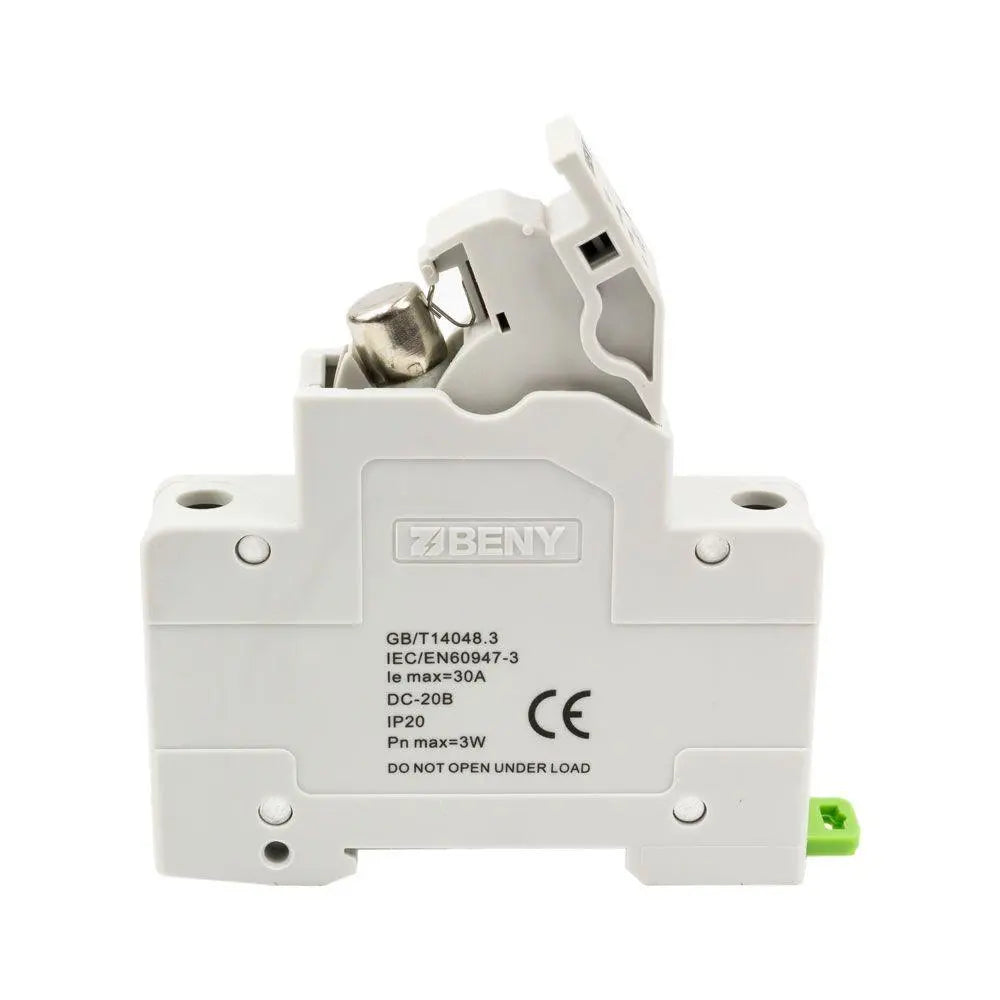

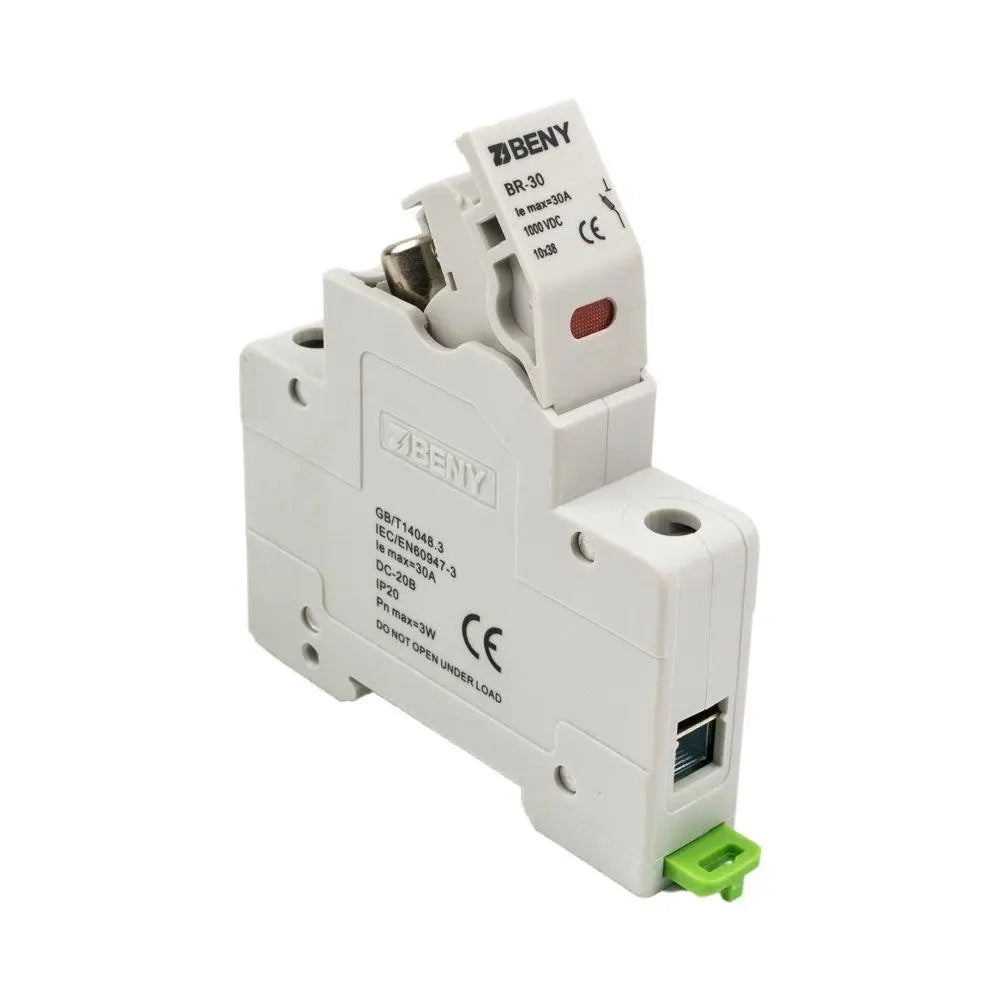

DC Fuse Holder 10x38, max 30A

Fuse holder for 10x38 and 10,3x38 mm cylindrical DC rated fuses. DIN-rail mounted. Good quality yet fairly priced, compact design. 1 DIN module width.

Single pole, max 1000VDC, max 30A. Breaking capacity up to 20kA,

Accepts up to 25mm² connections. 2.5 Nm torque.

IEC 60947-3 compliant, CE certified.

Don't forget to add matching fuses

Datasheet

Please note that no fuse is included with this product. Always use separate fuses for both positive and negative DC connections.

Important note on protection components selection:
Fuse and breaker current rating is not the same as your normal operating current. For continuous loads, choose a fuse or breaker with a higher current rating than the load so it does not run too close to its limit. A heavily loaded protective device may cause false trips, excessive heat, reduced lifespan and less safety margin. For DC circuits roughly 25% overhead is a good rule of thumb. If the system has an operating current of 20A, go for a 25A protective device. 25A = 30/32A, 30A = 40A, 50A = 63A and so on.
