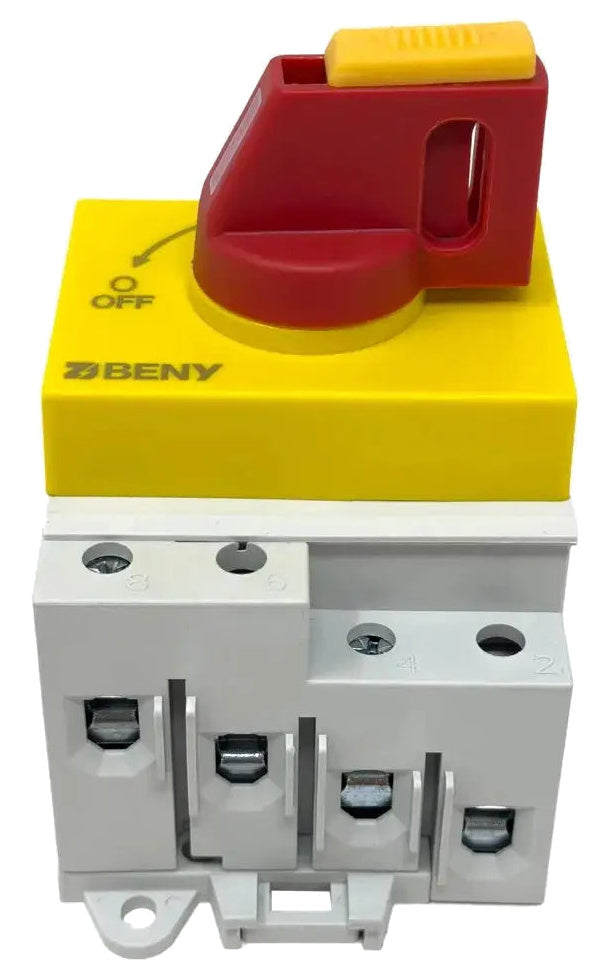

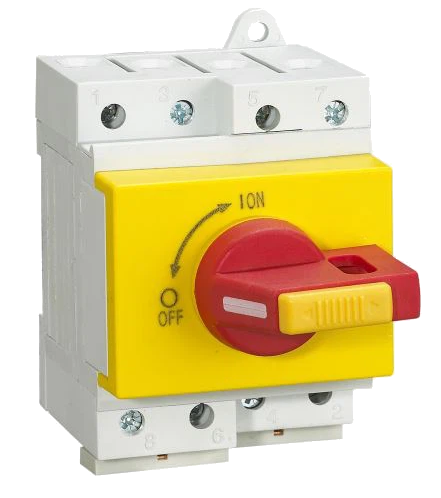

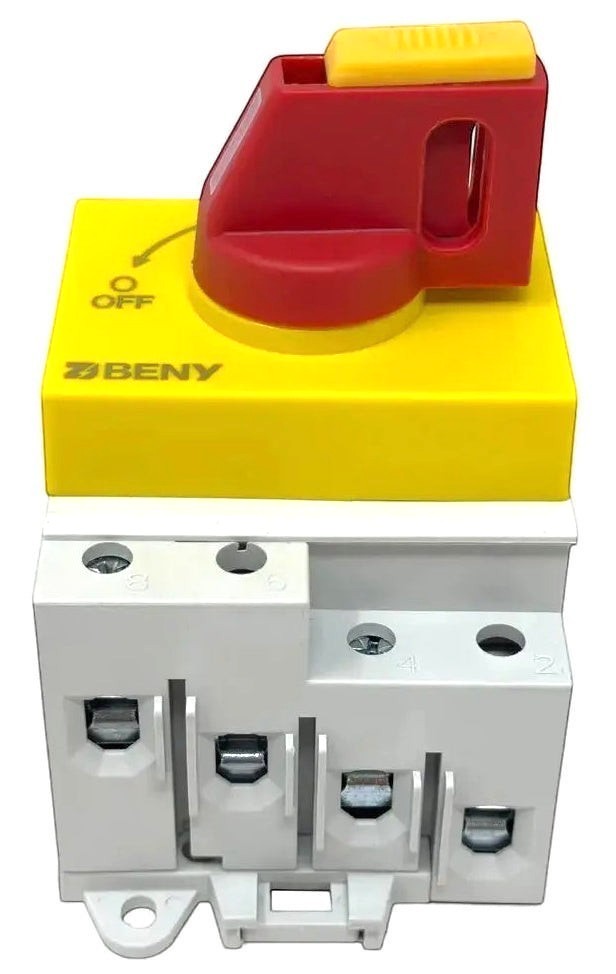

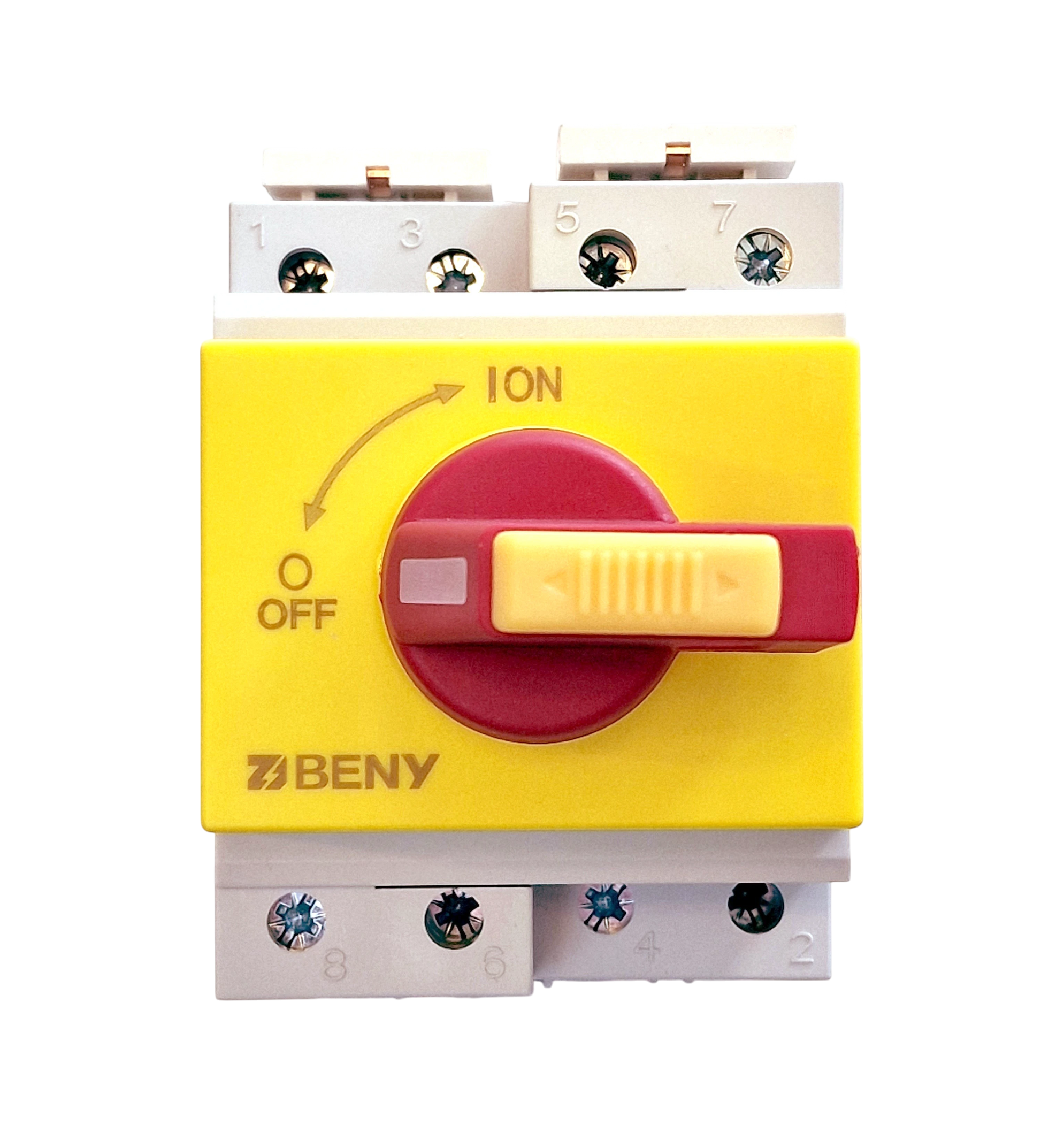

DC isolator switch for DIN rail mounting. Certified for up to 1200V and 32A. Sturdy design.
AS60947-3:2018, IEC 60947-3, TUV/CB/CE certified. Arc time <3ms, No polarity. Accepts up to 16mm² connections. Max 1.8 Nm torque.

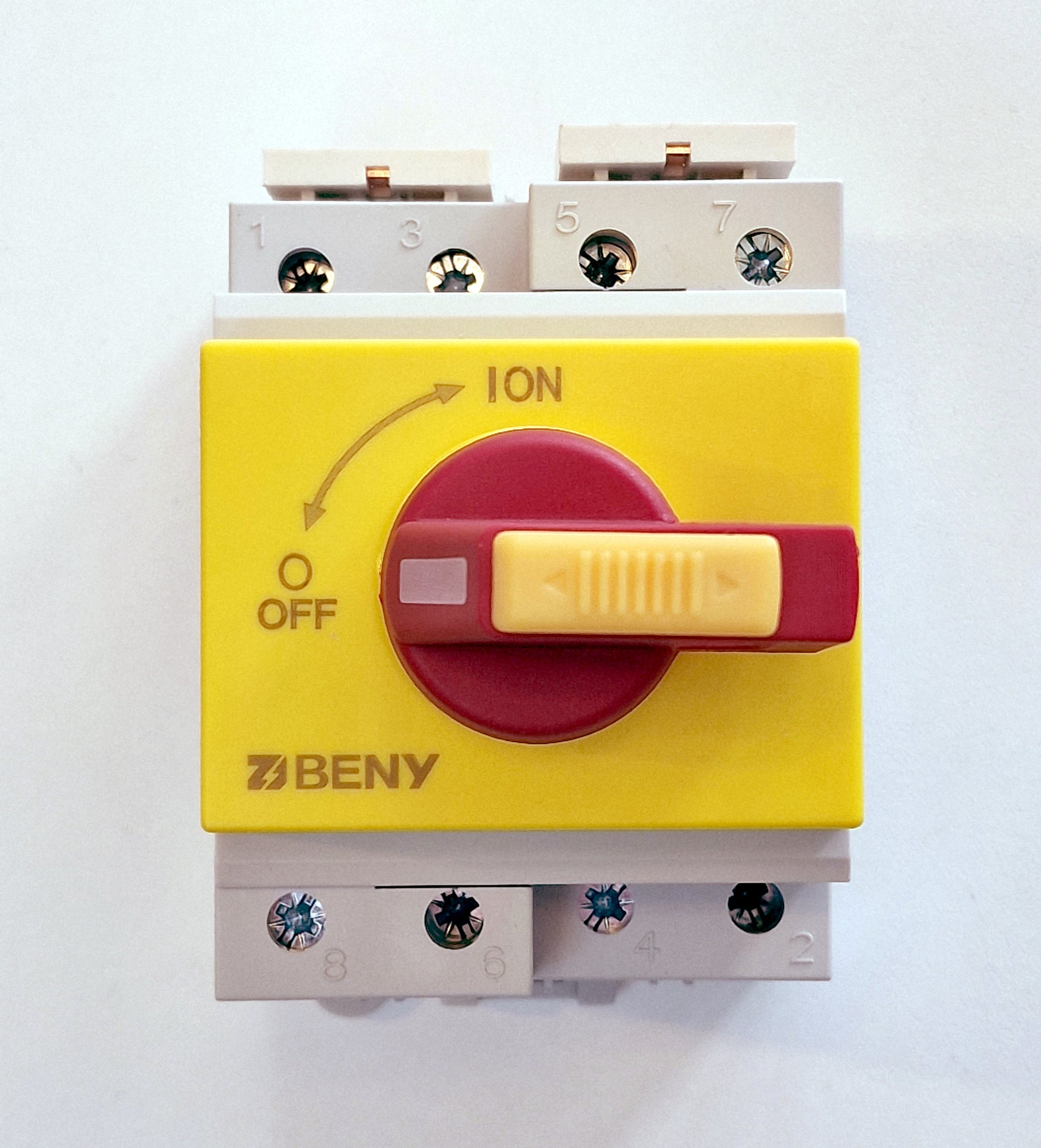

The yellow safety switch on the knob can be used to avoid accidental activation. In addition a lock can be attached through the loop in the knob to keep it from being activated all together.

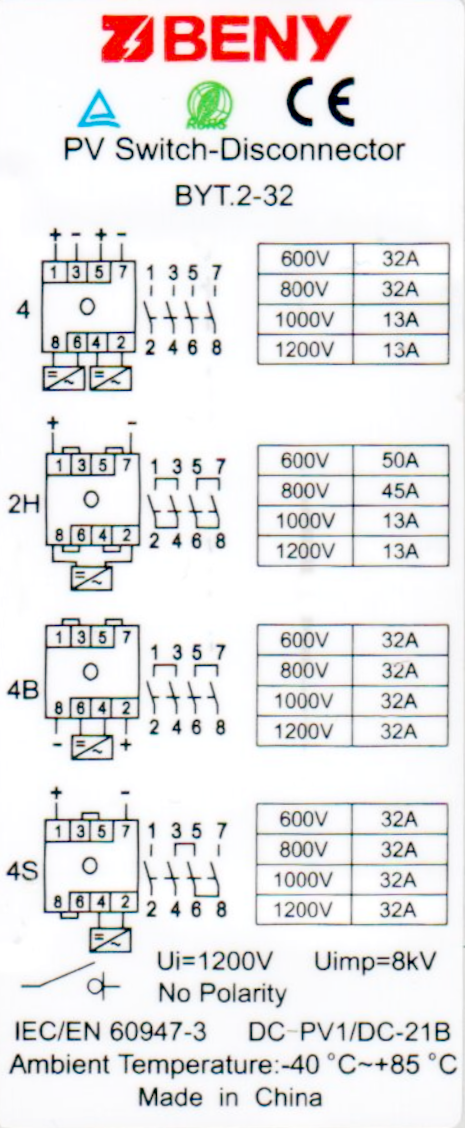

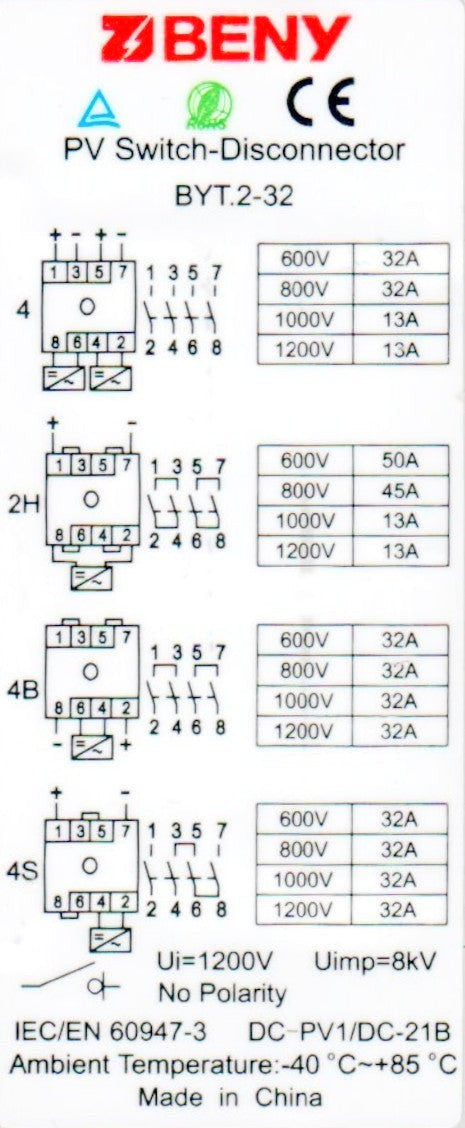

Can be physically reconfigured using the included bus bars to accommodate different placement of input and output connections. The bus bars has been equipped, tested and verified during manufacturing to 1200V 32A with both input and output at the bottom of the unit (config 4B).
