Stark Box Mini, DF Fuses

A handy little box intended to be placed close to the battery. Perfect for longer cable runs, to keep the HV totally separated from the controller, and/or to easy and safely reduce the cable area.

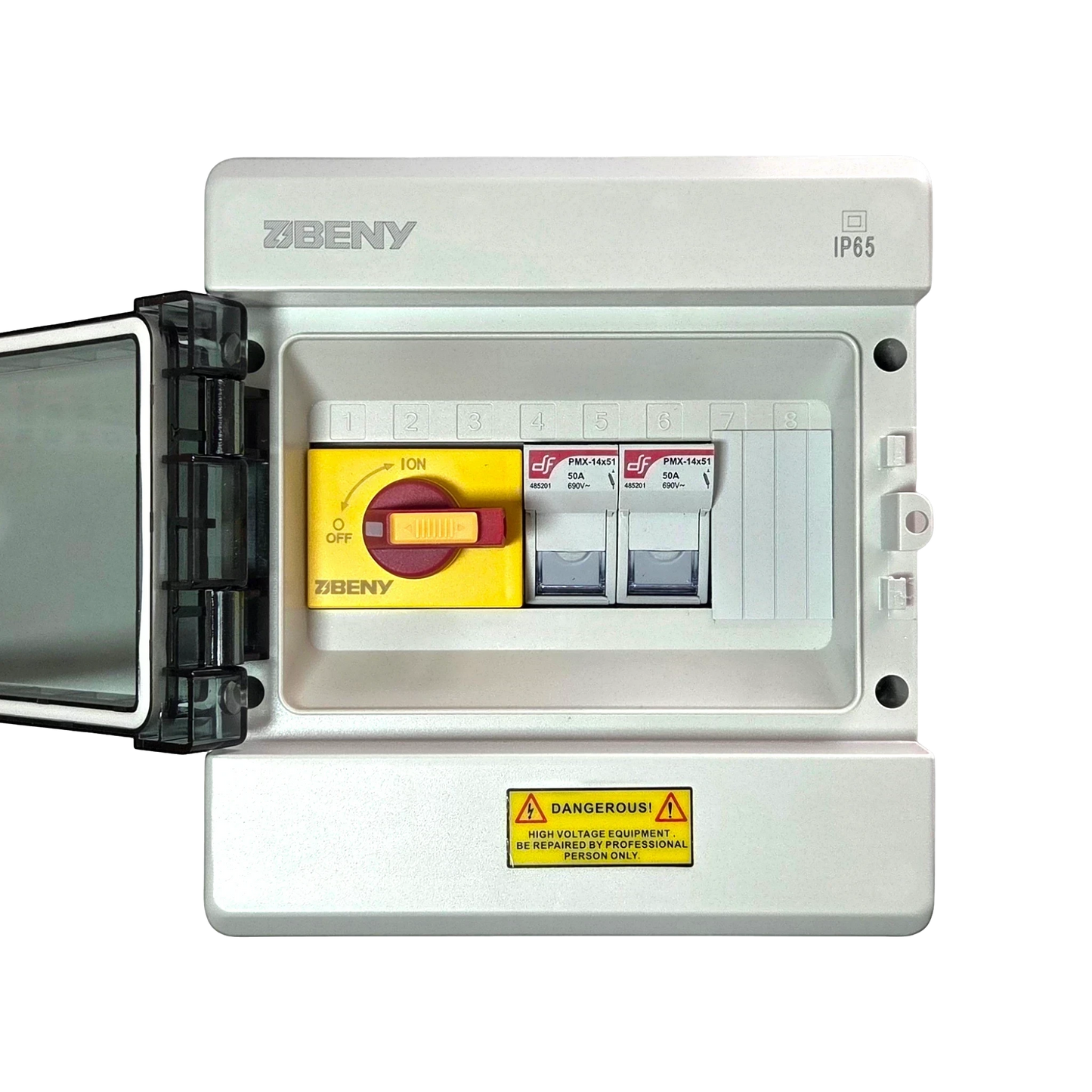

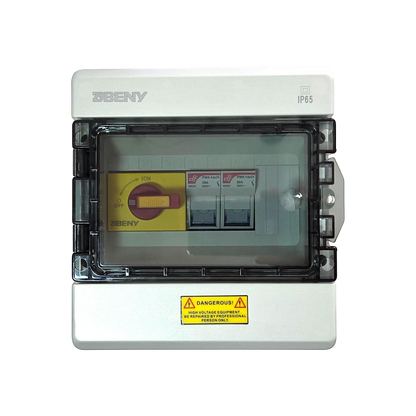

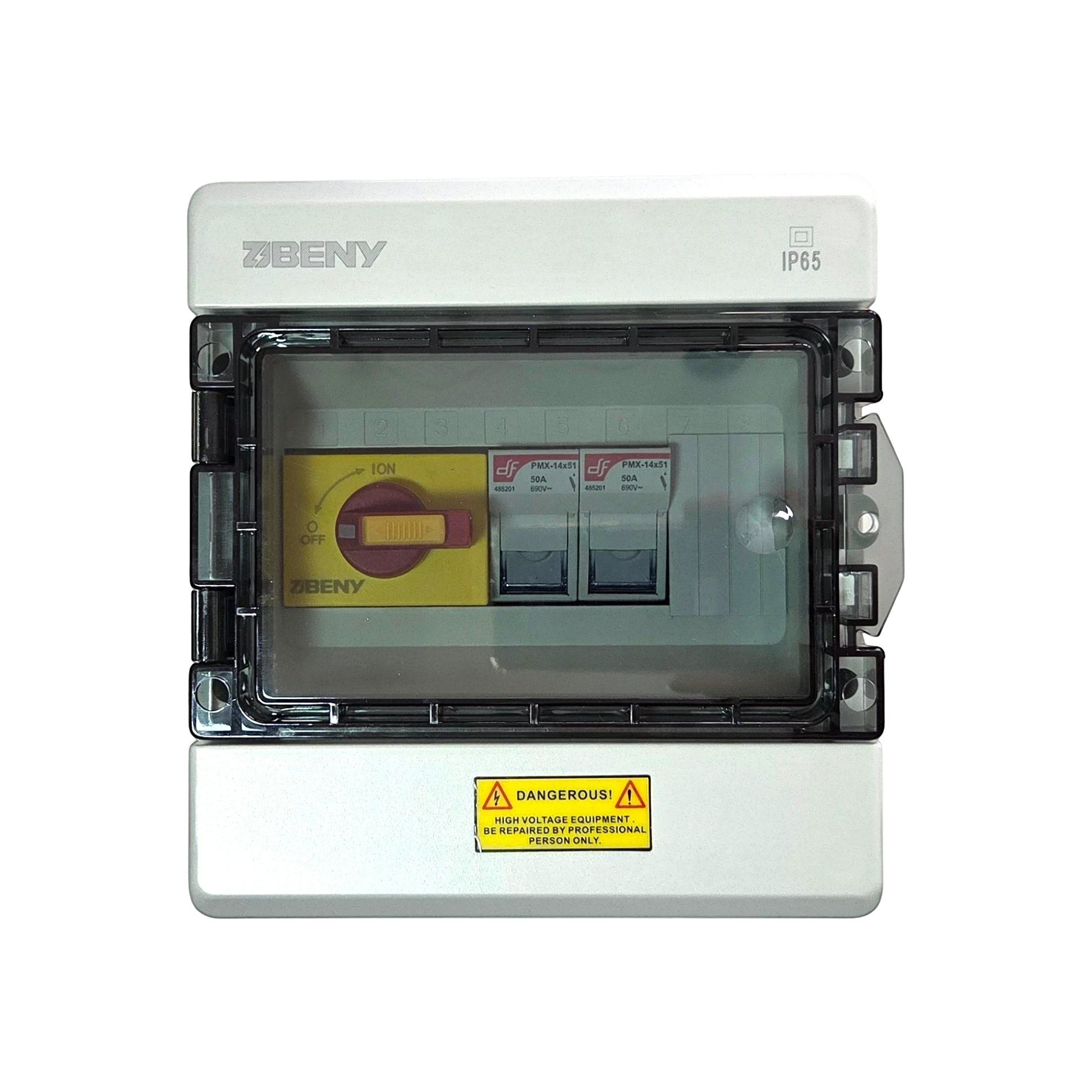

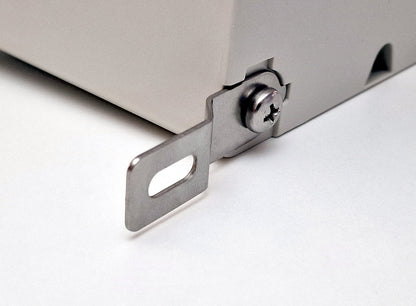

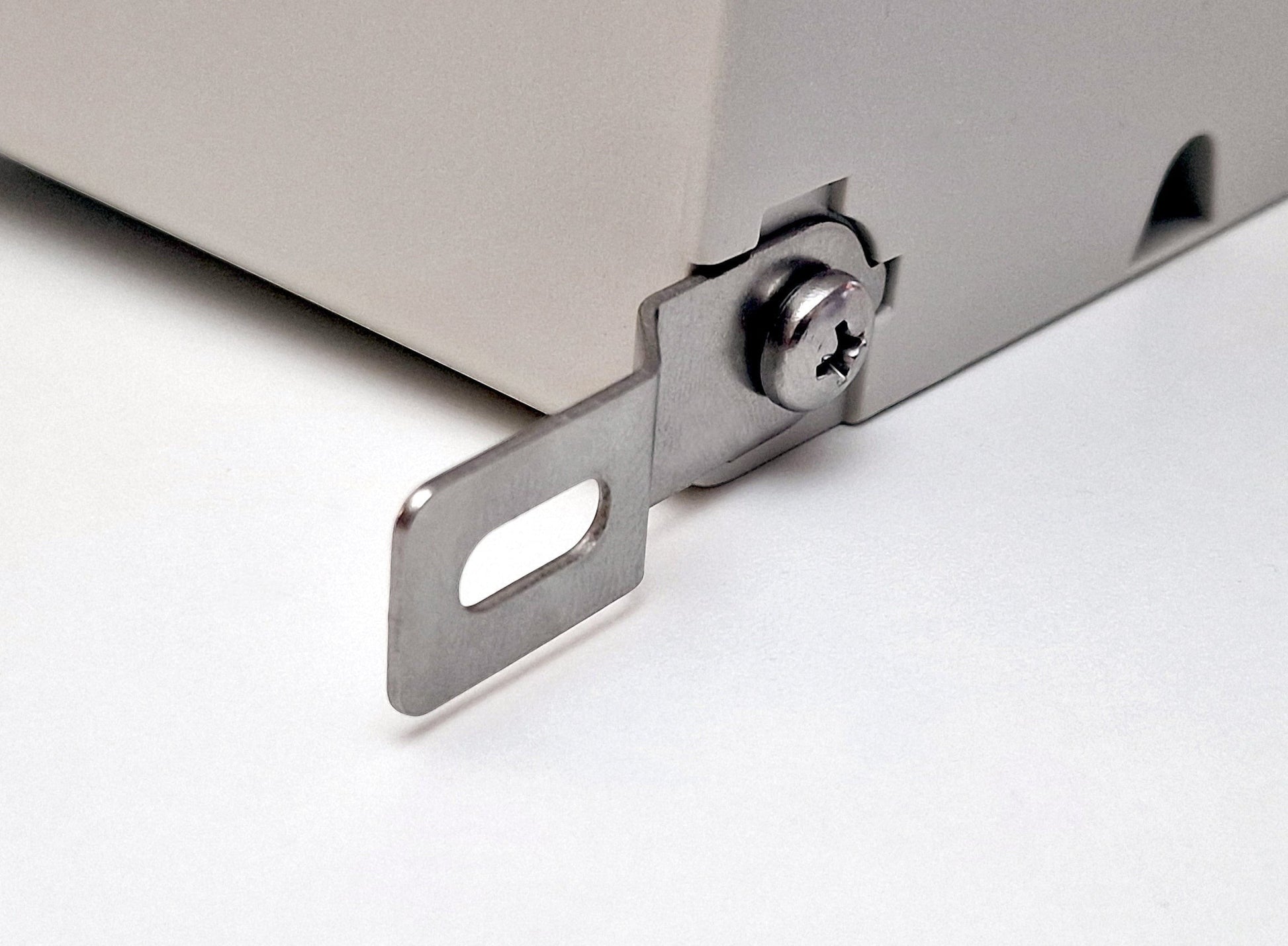

This DIY kit is housed in a heavy duty IP65 enclosure which is UV resistant and flame retardant.

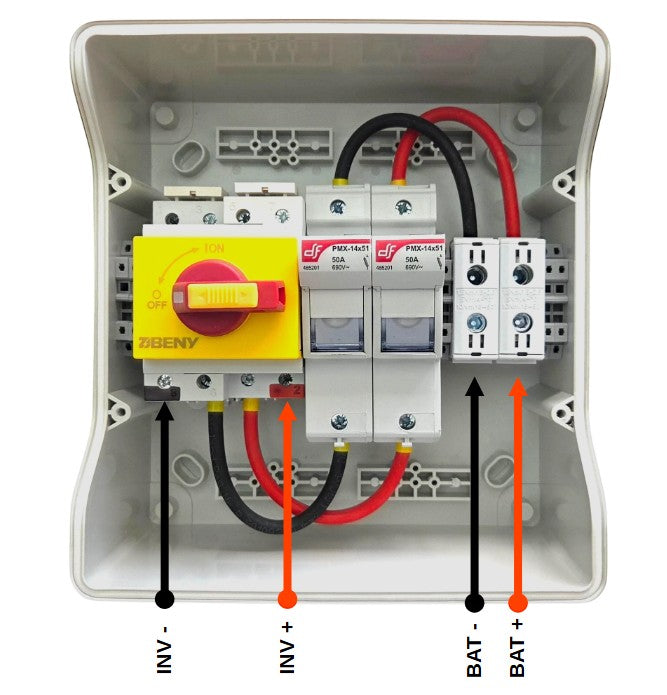

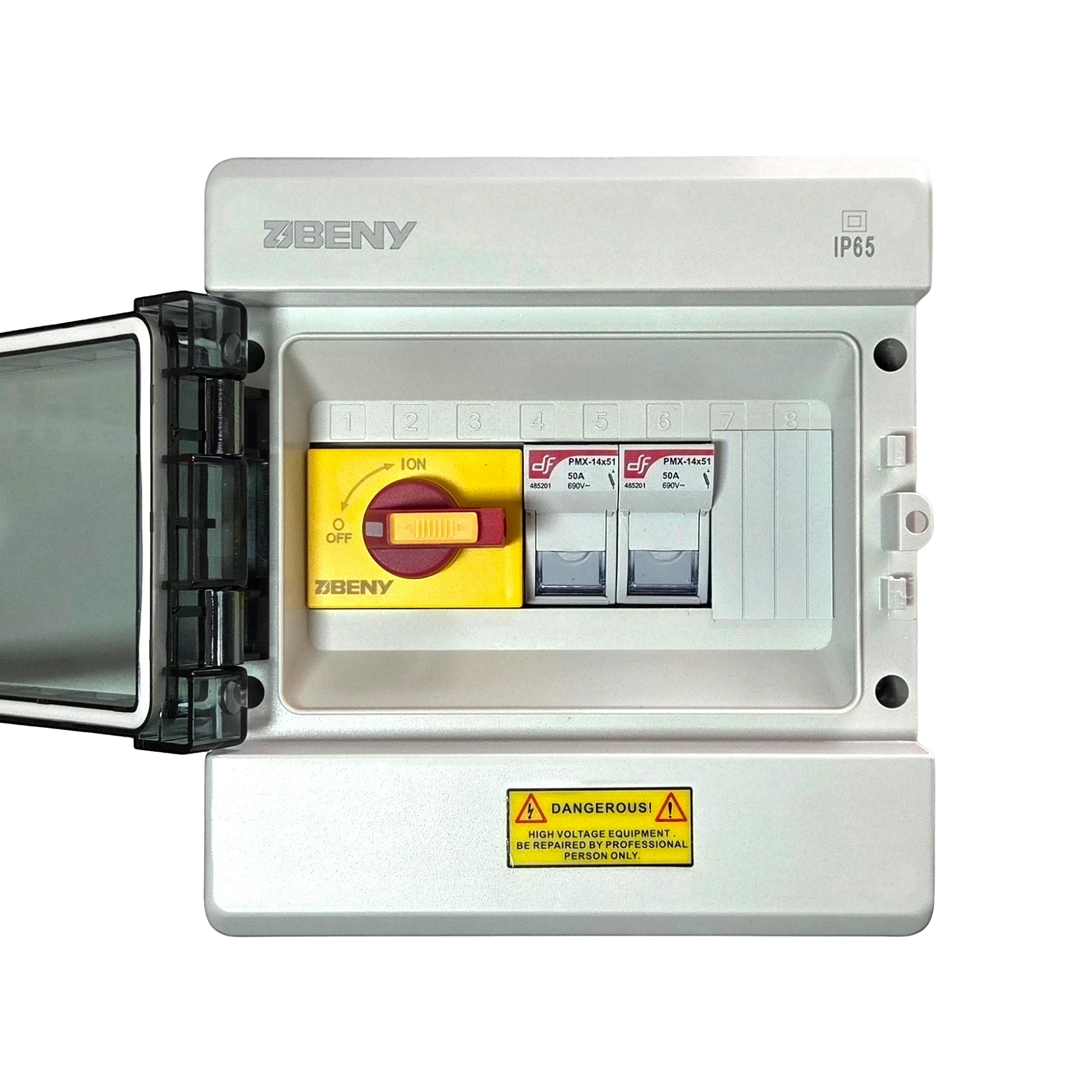

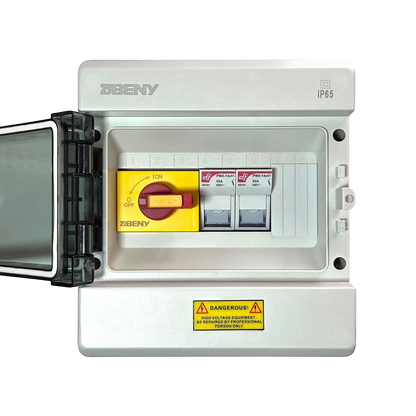

The battery positive and negative input is connected on the right most terminals that accepts up to 50mm² cables and the inverter output is connected to the DC isolator switch which accepts up to 16mm² connections.
This way the battery can be safely disconnected from the inverter and appropriate fuses will protect from over current.

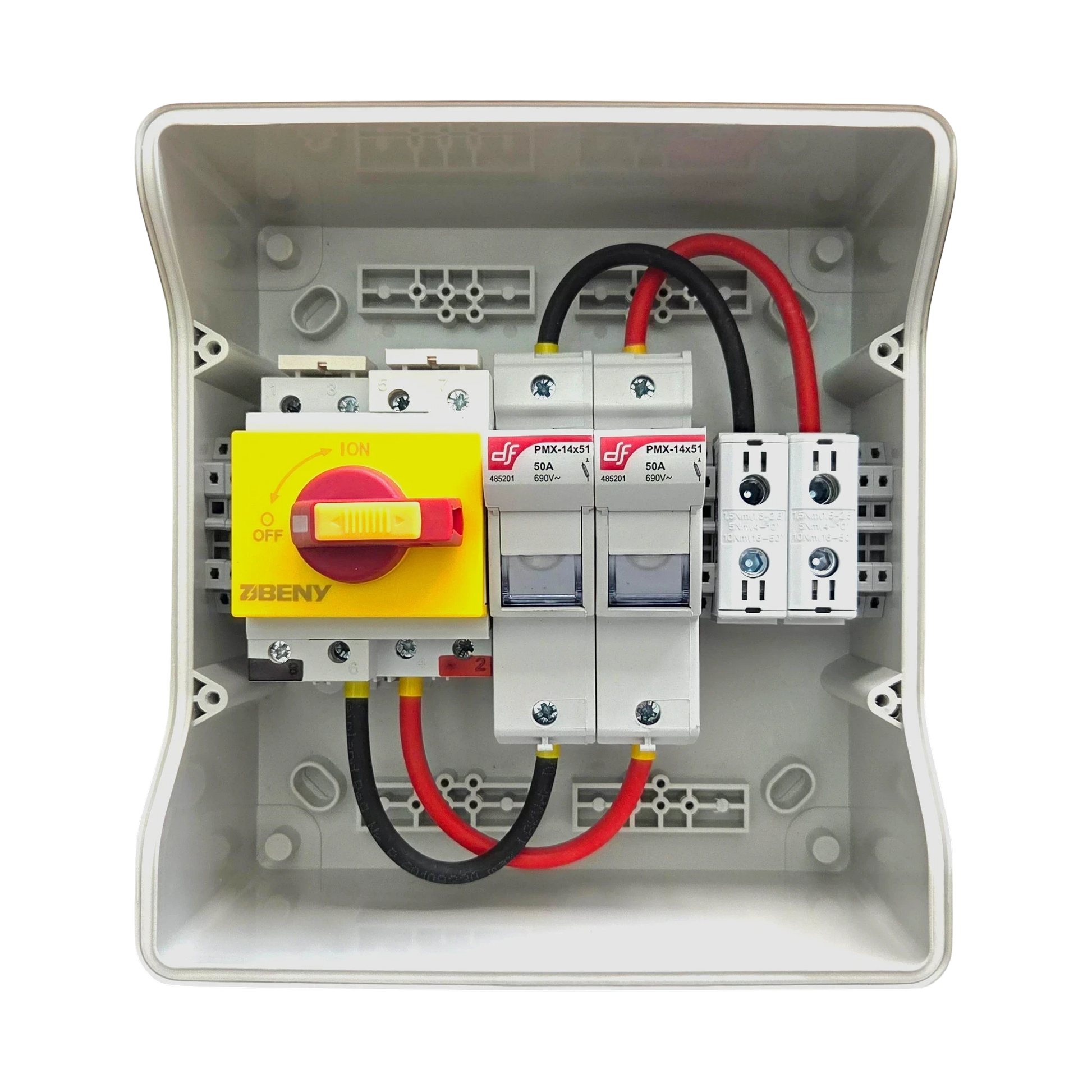

The DC high voltage hardware is designed to handle maximum 600VDC at 32A. This is limited by the DF Electric gBat 14x51 fuses included. Two equally specified fuses will be pre installed according to your selection. Extra fuses can be found here.

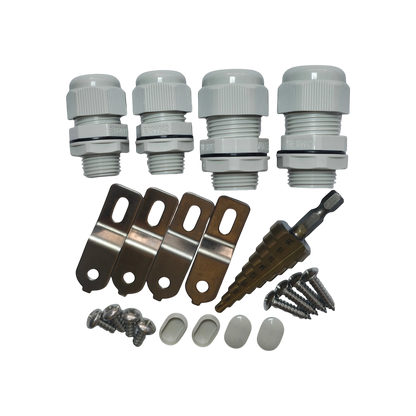

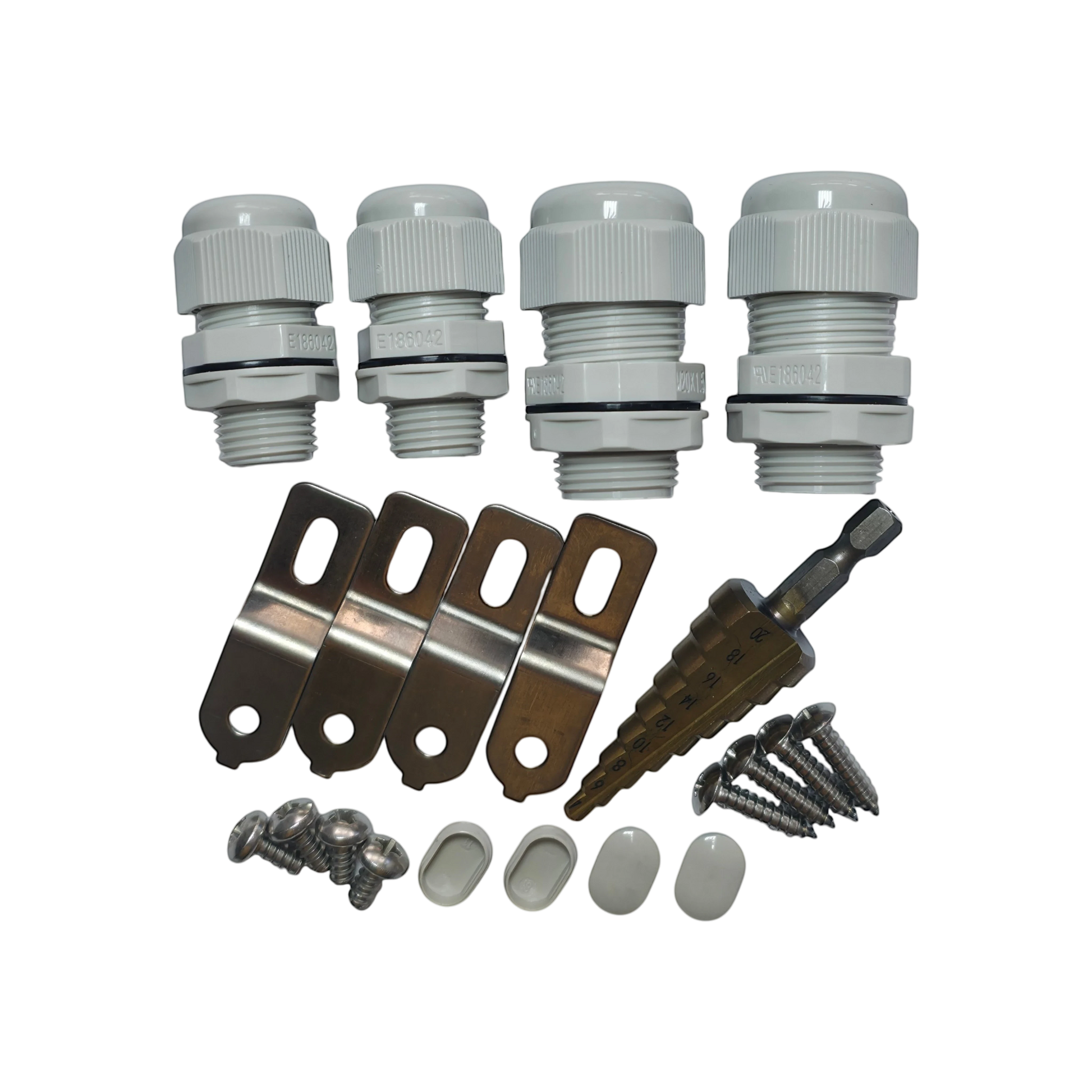

The accessory kit includes two sizes of cable glands to accommodate cable diameters of the following ranges and your own desired cable placement. M represents the hole diameter needed. A step drill bit is included to simplify the install.

M16 = 5-10mm | M20 = 10-14mm

The manufacturers recommended torque has been applied to all pre installed screw terminals where applicable.

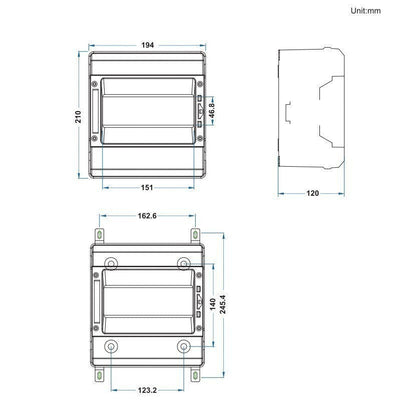

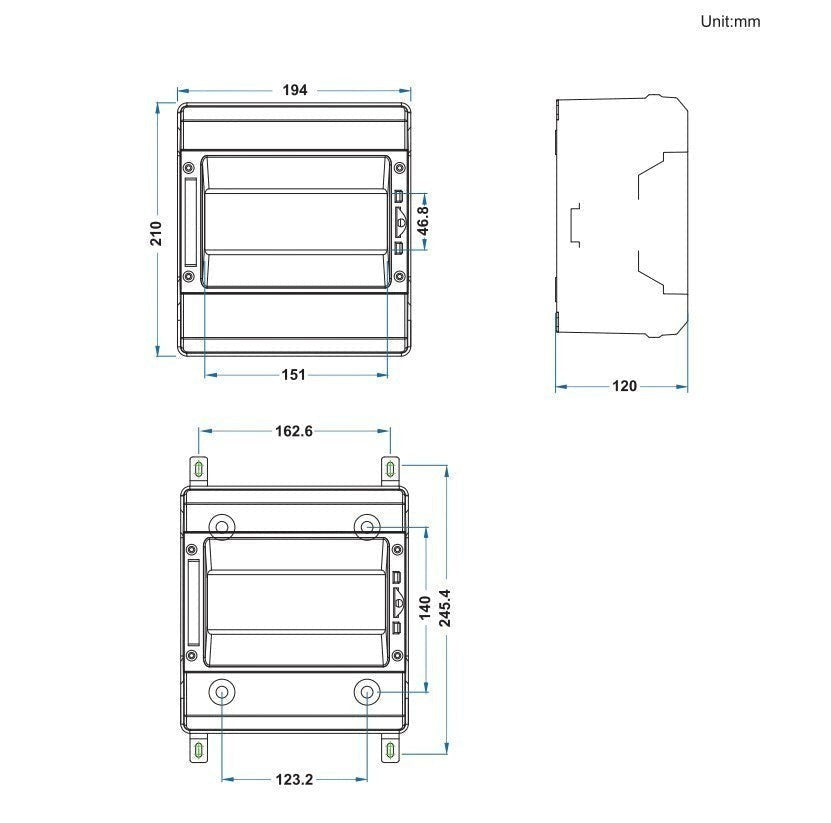

Dimensions: 210 x 194 x 120mm

Important note on protection components selection:
Fuse and breaker current rating is not the same as your normal operating current. For continuous loads, choose a fuse or breaker with a higher current rating than the load so it does not run too close to its limit. A heavily loaded protective device may cause false trips, excessive heat, reduced lifespan and less safety margin. For DC circuits roughly 25% overhead is a good rule of thumb. If the system has an operating current of 20A, go for a 25A protective device. 25A = 30/32A, 30A = 40A, 50A = 63A and so on.

Every aspect of this kit is subject to change without notice. Assembly status as depicted and the kit is delivered as is without warranty. Manufacturers warranty for the included hardware applies. The buyer/user is responsible for any and all further assembly and operation. Expect 1-5 days of manufacturing time.

Please note that any installation involving regulated voltage levels are to be carried out by licenced individuals only. Local regulations apply. Redispose AB is not liable for direct or indirect damages that may arise from the use of the kit.
