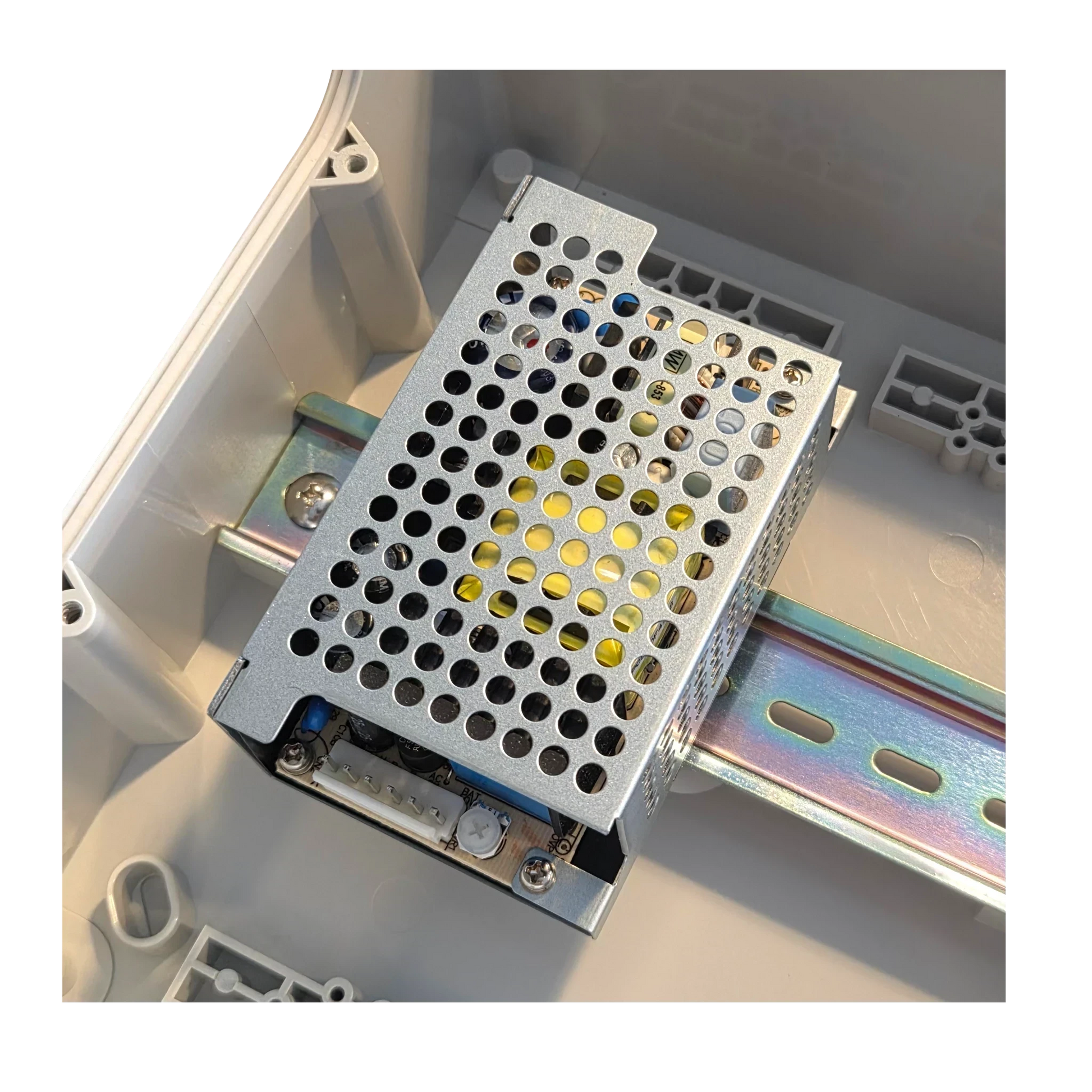

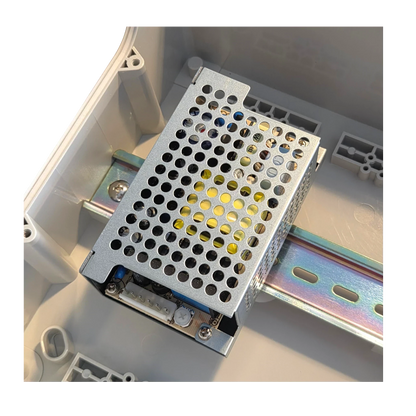

• Redispose Meanwell PSC-60A-C 12VDC 2.8A switched power supply unit with UPS function mounted on a DIN rail inside a plastic enclosure.

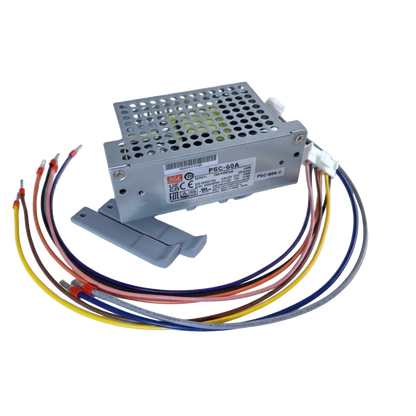

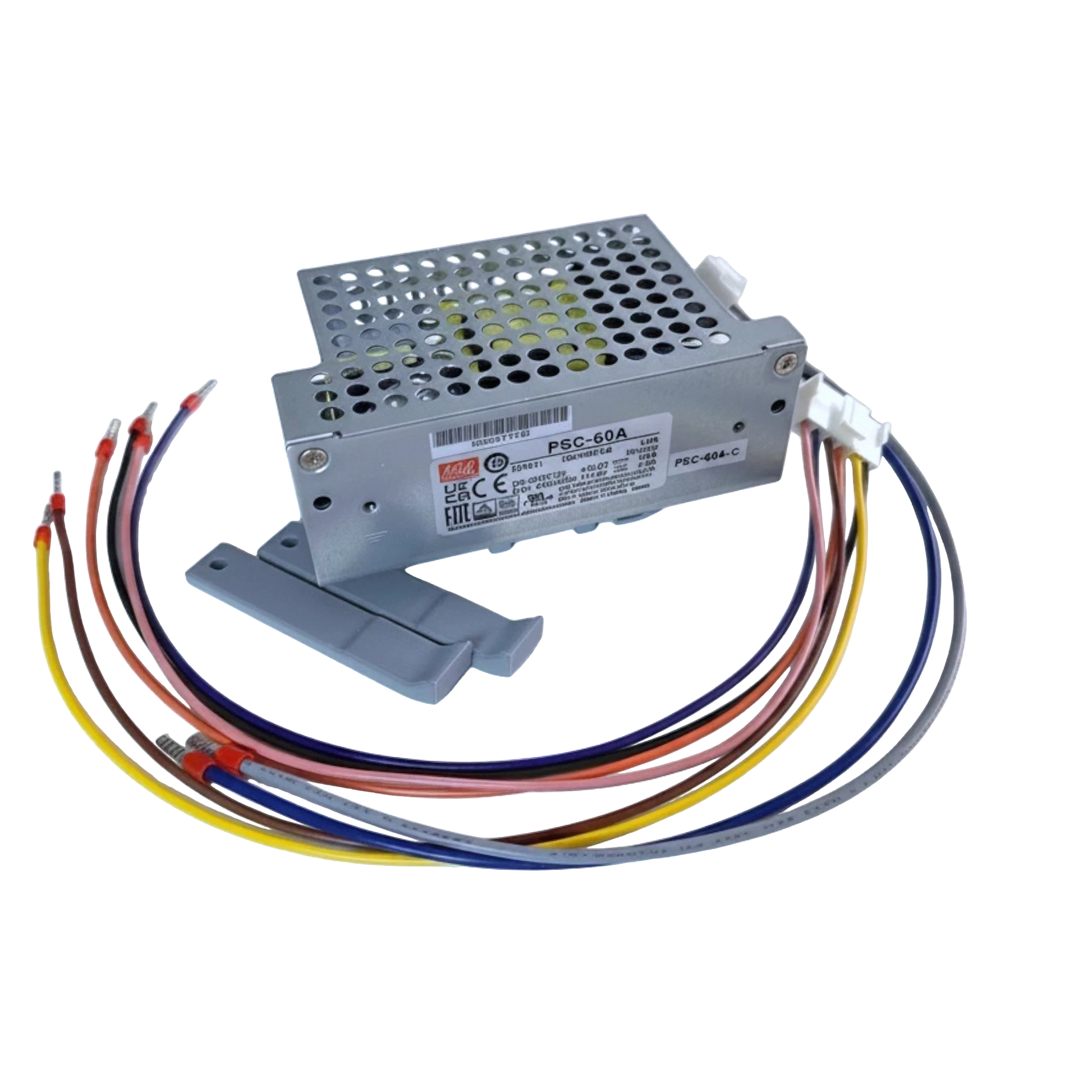

  • Redispose Meanwell PSC-60A-C 12VDC 2.8A switched power supply unit with UPS function and attached cables, includes DIN rail clip.

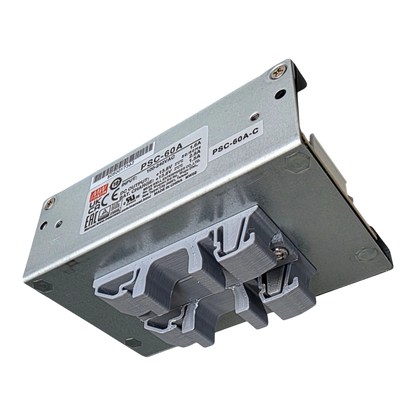

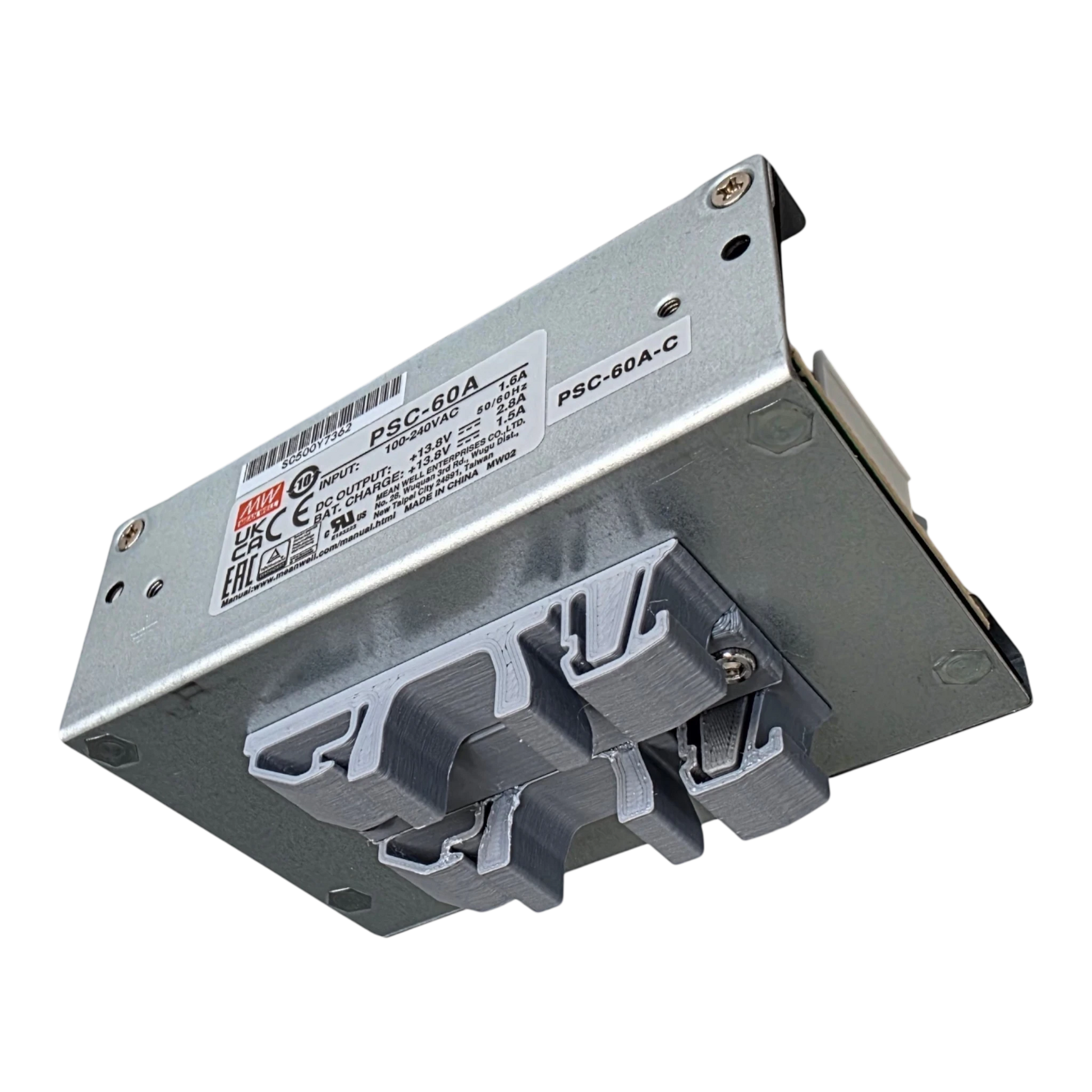

  • Redispose Meanwell PSC-60A-C 12VDC 2.8A switched power supply unit with UPS function and 3D-printed DIN rail clip.

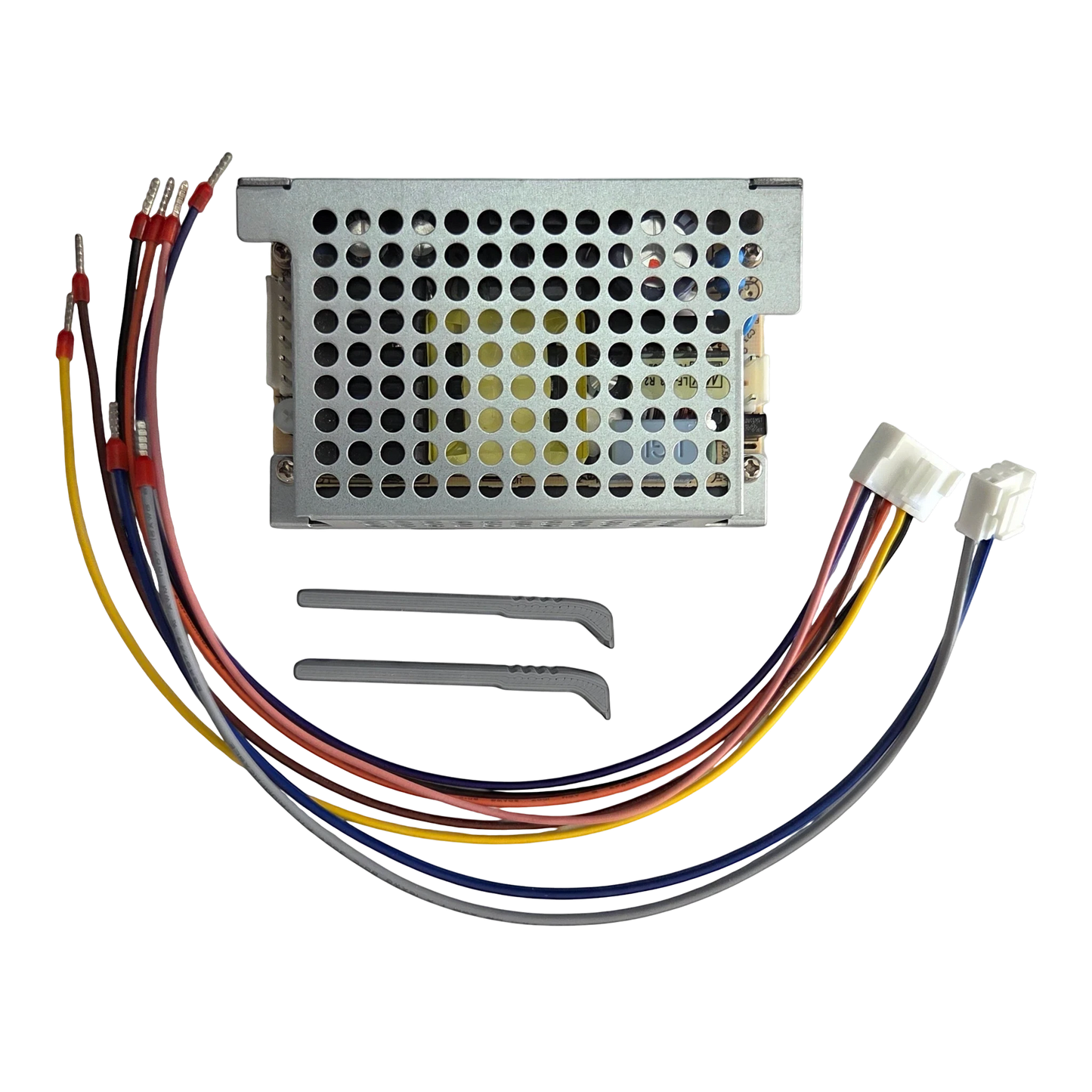

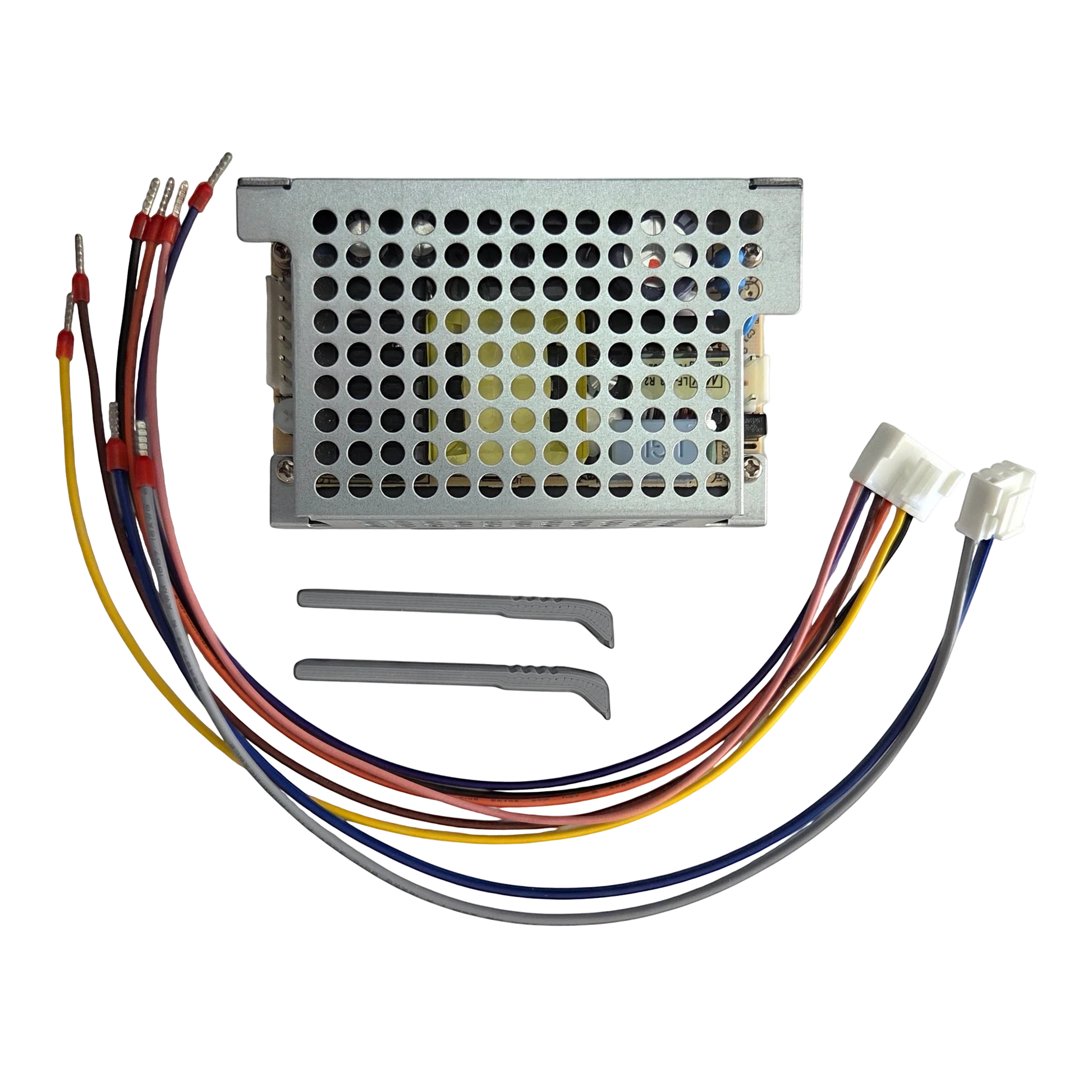

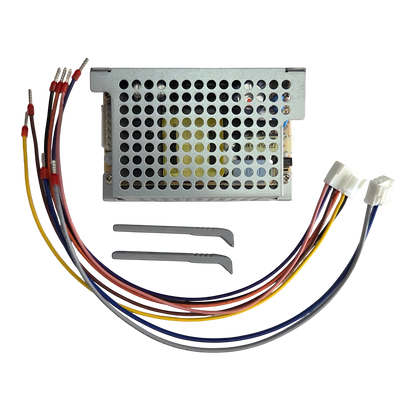

  • Redispose Meanwell PSC-60A-C 12VDC 2.8A switched power supply unit with UPS function and included cables.

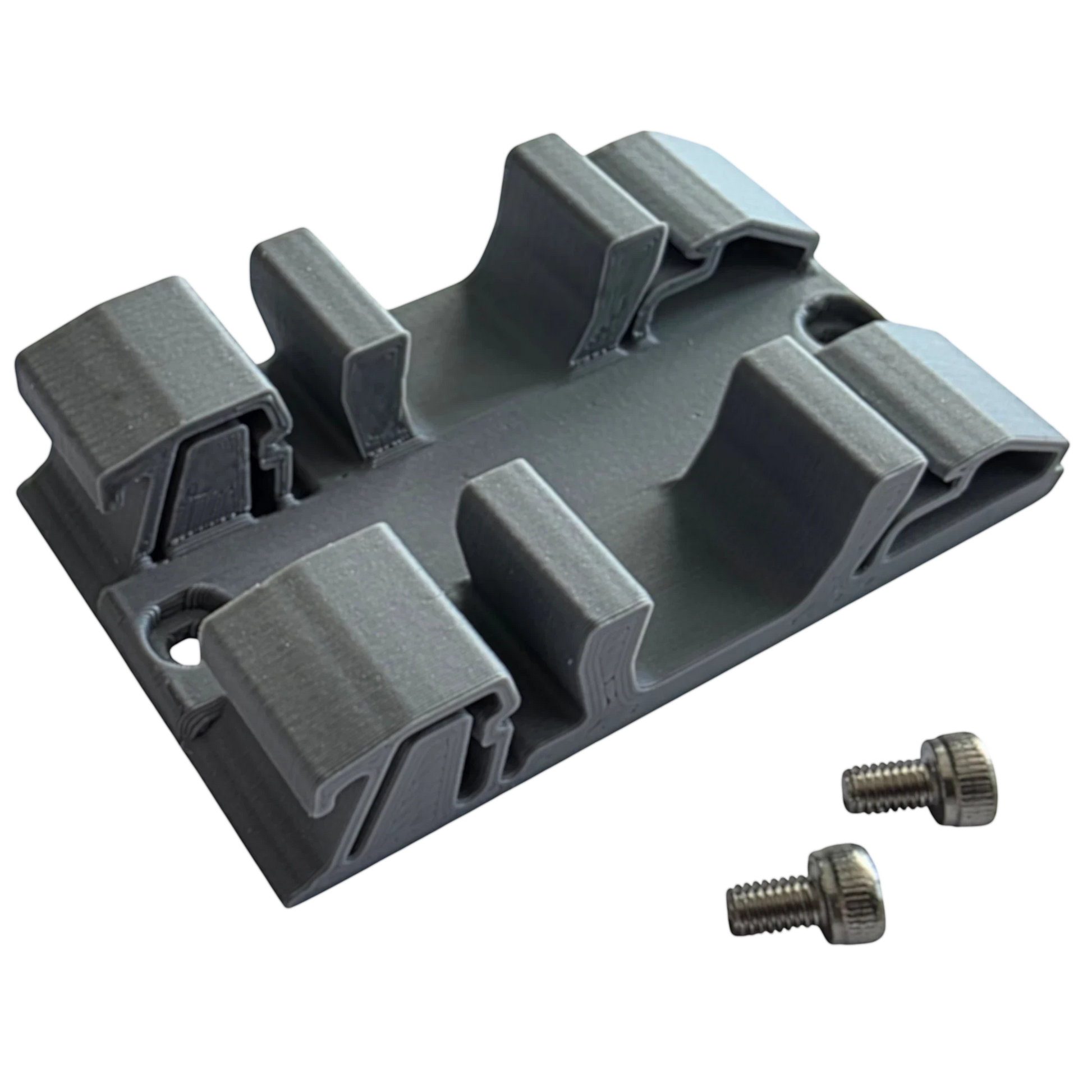

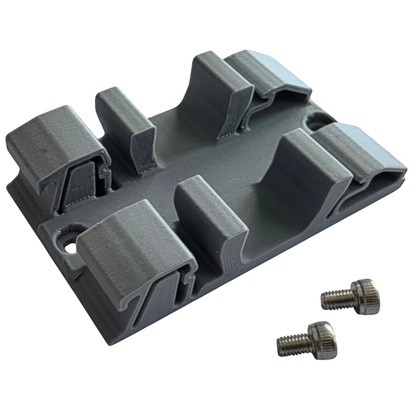

  • Redispose 3D-printed grey DIN rail clip with two silver screws, designed for Meanwell PSC-60A-C power supply.

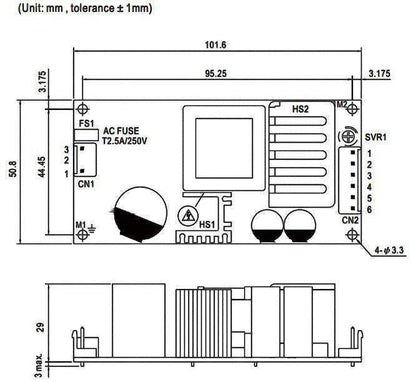

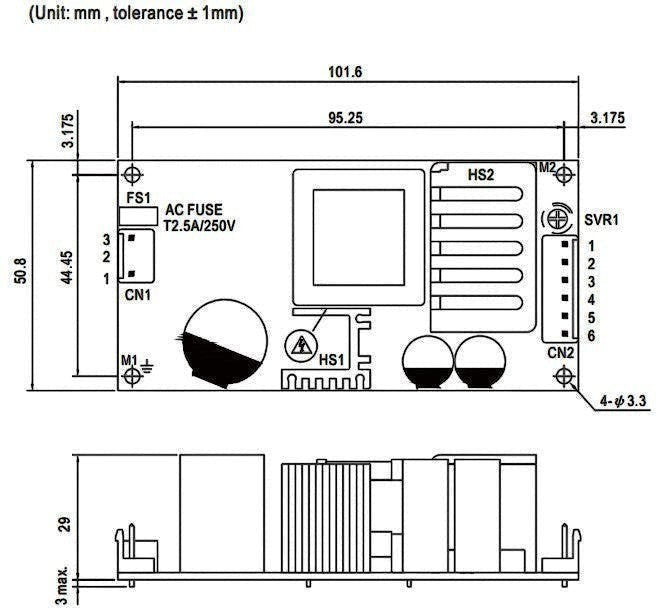

  • Redispose switched power supply unit schematic, 12VDC 2.8A, with UPS function, showing dimensions and component labels like AC FUSE, CN1, HS1, HS2, M1, M2, and SVR1.

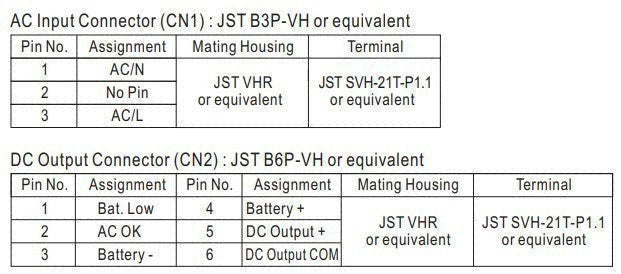

  • Redispose switched power supply unit connector pin assignments for AC input and DC output.
1 7

Meanwell

Switched power supply kit, UPS, 12VDC 2.8A

Switched power supply kit, UPS, 12VDC 2.8A

€33,00 EUR
€33,00 EUR
Sale Sold out
Taxes included if applicable. Shipping calculated at checkout.

Meanwell PSC-60A-C switched power supply unit with UPS function, 12VDC output with fine adjustment trimmer. In addition AC status and battery status outputs available. This kit includes customized components as depicted in the images to make installation as easy as possible. Just add a 12V chargeable battery for true UPS (backup power) function.

This product normally does not include anything but the actual unit when delivered from the manufacturer. This bespoke kit includes a 3D-printed DIN rail clip and properly terminated and dimensioned cables for all input and outputs.

Protected against overload, overvoltage and short-circuit, this model has more than enough power to run most battery emulator setups.

Input voltage: 90 - 264VAC
Output voltage: 12VDC (12 - 15VDC)
Output current: 2.8A + 1.5A battery channel
Power rating: 59,34W
Efficiency: 84%
Maximum ripple: 120mVp

Datasheet
