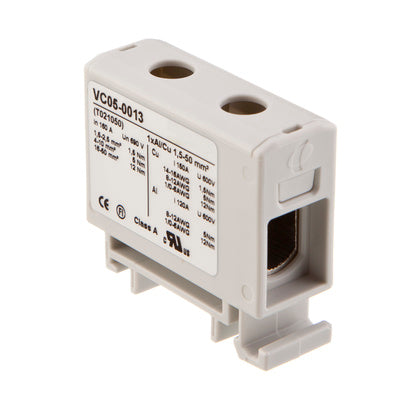

Terminal block, 1,5-50mm² Al/Cu
Terminal block, 1,5-50mm² Al/Cu
Regular price
€7,50 EUR
Regular price
Sale price
€7,50 EUR
Taxes included if applicable.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Certified universal clamp/terminal block for Al and/or Cu conductors, Class A, which guarantees safety and compliance with current requirements. Nordic manufacturing. Easy installation and reliable tightening with an Allen key. Compact and stable construction. Tinned aluminum coated with paste against oxidation. Can be connected with several conductors and without end sleeve. Adapted for solar cells.
Technical data
- Connectable conductor cross section multi-wired and solid core, with or without end sleeve: 1.5-50 mm²
- Rated current In: 160A (Cu) / 145A (Al)
- Rated voltage: 1000VAC / 1500VDC
- Mounting method: DIN rail 35 mm
- Material insulation body: Thermoplastic
- Inflammability class of insulation material according to UL94: V2
- Width: 18 mm
- Depth: 48 mm
- Height: 43 mm
